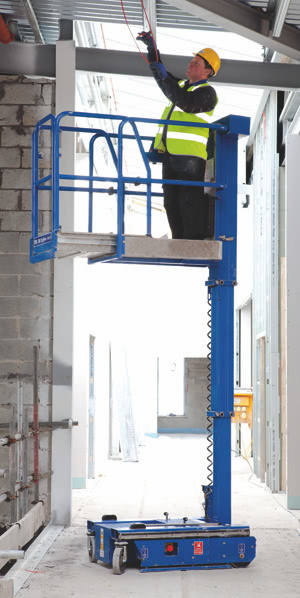

Nano SP – 4.50m – Low Level Access

Features of the Nano SP 4.5m low level access platform:

  • Fully self-propelled, even when fully elevated
  • Rated for indoor and outdoor use
  • Simple and intuitive single joystick for all functions
  • Extremely manoeuvrable, zero turning radius and 4.5m working height
  • Only 478kg in weight, and able to work on raised access flooring (Kingspan Approved)
  • Can be transported by standard 500kg tail-lift vehicles
  • Ultra compact with only a 750mm x 1200mm footprint
  • Large 1500mm x 700mm platform size (cantilever extended)
  • 500mm cantilever deck

Specification Overview

Maximum Working Height 4.50m
Maximum Platform Height 2.50m
Maximum Outreach 0.39m
Overall Width 0.75m
Stowed Length 1.20m
Stowed Height 1.59m
Platform Capacity 200kg
Gross Machine Weight 478kg
Tyres non marking
Deck Extension 0.5m

To hire this machine, or for more information.

   0845 457 0000      Contact form
