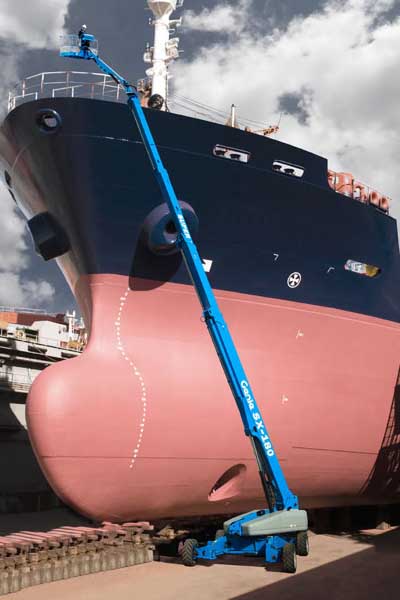

Genie SX180 – 56.86m Telescopic Boom Lift

Features

Diesel
Jib
Rough Terrain
Superboom

Working Envelope

genie-sx180 - working envelope

Genie SX180 – 56.86m Telescopic Boom Lift

Benefits of the Genie SX180 telescopic boom lift:

  • Productive, reliable 56.96m working height telescopic boom
  • Features a working envelope ideal for the most extreme access jobs with a rotating jib that positions workers gear exactly where they are needed
  • Stard  2.44 m (8 ft) self-leveling platform with an unrestricted capacity of 340 kg (750 lb)
  • Hydraulic platform rotation of 160°
  • Newly designed X-chassis extends retracts to provide both stability on the job a narrow profile for transport
  • The boom lift’s stowed dimensions are 3.05m (10 ft) in height, 2.49 m (8 ft 2 in) wide, with a stowed length of 12.98 m (42 ft 7 in) 24,948 kg (55,000 lbs) allowing it to be easily transported
  • Drive enabled at full height

Specification Overview

Maximum Working Height 56.86m
Maximum Platform Height 54.86m
Maximum Outreach 24.38m
Overall Width 2.49m
Stowed Length 14.33m
Stowed Height 3.05m
Platform Capacity 340kg
Gross Machine Weight 24,856kg
Gradeability 35%
Tyres 445/65D 22.5 18 ply foam-filled
Ground Clearance 0.38m

To hire this machine, or for more information.

   0845 457 0000      Contact form
