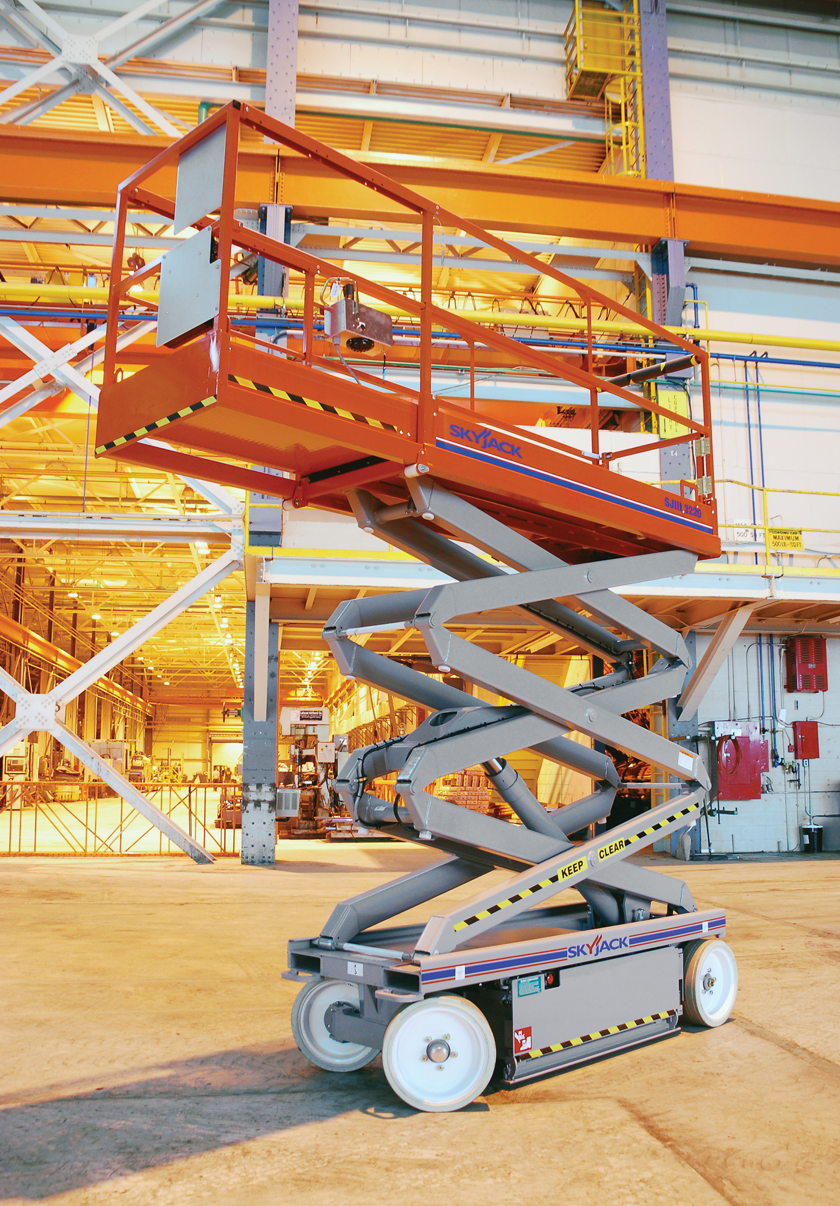

SkyJack SJ3220 – 8.1m – Electric Scissor Lift

The Narrow Conventional Series DC Electric Scissor Lifts offer high capacity and large platform areas, making them suitable for any on-slab application. Featuring variable speed rear wheel hydraulic drive, the SJ3220 offers a working height of 8.1m and 30% gradeability. The lightest machines in their class, these models offer a standard 0,9 m roll out extension deck, and can be driven at full height.

The SJ3220 can also access through standard doorways.

Specification Overview

Maximum Working Height 8.1m
Maximum Platform Height 6.1m
Overall Width 0.81m
Stowed Height 1.73m
Platform Capacity 408kg
Gross Machine Weight 1594kg
Gradeability 30%
Tyres Non marking
Overall Length 2.32m
Deck Extension 90cm

To hire this machine, or for more information.

   0845 457 0000      Contact form

Features

  • Drivable at full height.
  • Variable speed, rear two wheel hydraulic drive.
  • Dual holding brakes.
  • Proportional controls for drive & lift functions.
  • 0.9 m roll out extension deck.
  • 24V DC power source.
  • Low voltage battery protection.
  • Analog control system.
  • Colour coded and numbered wiring system.
  • 30% gradeability.
  • Solid rubber, non-marking tyres.
  • Pothole protection system.
  • Wiring for AC outlet on platform.
  • Tilt alarm with drive & lift cut-out.
  • Overload sensing system.
  • Lowering warning system.
  • Operator horn.
  • Hinged railing system.
  • Half height spring hinged gate.
  • Lanyard attachment points.
  • Forklift pockets and tie down/lift lugs
